CXF 6/12
Part number
CXF 6/12

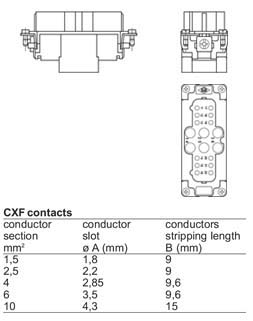

Brief description: female insert, 6 poles + PE, crimp connections, 40A, 690V / 12 poles 10A, 250V, 3, for female contacts 40A and 10A, size “77.27”, CLASS insert series
Technical details
| Product description | |
| Version | Crimp connections |
| Model | Female insert |
| Series | CX |
| Product Type | Male |
| Current | 16 |
| Voltage | 110v |
| Pin Type | 5 PIN |
| HZ | 50 |
| Category | 1Wall Mounted Interlocked |
| Style | Cable up to 7,5mm diameter |
| Family | CLASS inserts |
| Size | Size "77.27" |
| Technical data | |
| Material | N/A |
| IP degree of protection | IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure |
| General ordering information | |
| EAN13 code | 8015747225076 |
